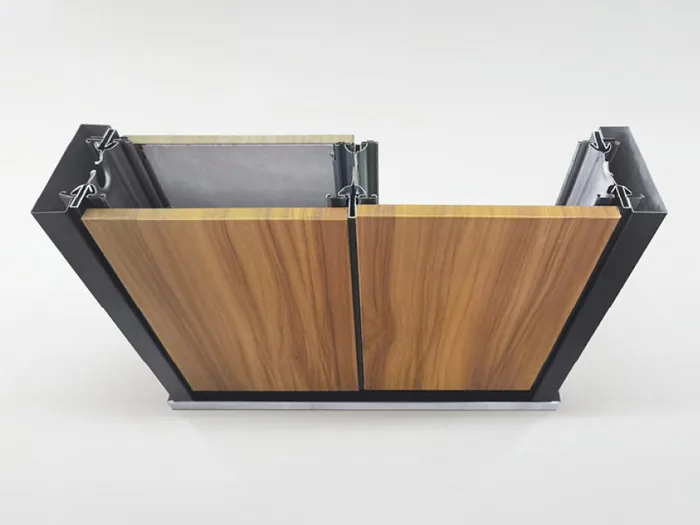

Composition of Steel Wall Panel

1. Base Layer

The base layer generally uses 0.6-0.8mm hot-dip galvanized steel sheet.

The steel sheet is processed with anti-rust and anti-corrosion treatment to improve durability and provide long-term protection during use.

2. Surface Layer

The surface of the steel wall panel can be treated with different coating technologies according to design requirements.

Available surface treatments include:

• Electrostatic powder coating

• Pre-roller coating

• Heat transfer printing

• Film coating

Different decorative finishes are available, including:

• Solid color

• Wood grain

• Stone grain

• Leather texture

These surface options provide flexible design solutions for different interior decoration projects.

3. Core Material

The backing material can be selected according to project requirements.

Available core materials include:

• Gypsum board

• Calcium silicate board

• Corrugated board

• Honeycomb board

The core material helps improve wall strength, stability, and impact resistance.

Main Advantages

Durable Steel Structure

Made with galvanized steel materials, the panel provides excellent strength and corrosion resistance.

Easy Maintenance

The smooth surface is easy to clean and maintain, making it suitable for high-use public spaces.

Flexible Design Options

Different colors, textures, and surface finishes can be customized according to interior design requirements.

Stable Wall Performance

The composite structure helps maintain a flat wall surface and improves overall stability.

Installation Methods

Steel wall panels can be installed using different structural systems according to project requirements.

1. Clip-in Installation

Special wall panel keels are used for installation. Decorative gaps can be reserved between panels for modern design effects.

2. Fixed Frame Installation

Panels are assembled with steel frames and fixed with screws to ensure structural stability.

3. Hanging Installation

Special keels and hooks are used to connect the panels, allowing flexible installation solutions.

4. Batten Installation

Special clamps and decorative battens are used to fix the panels and create different visual effects.

Applications

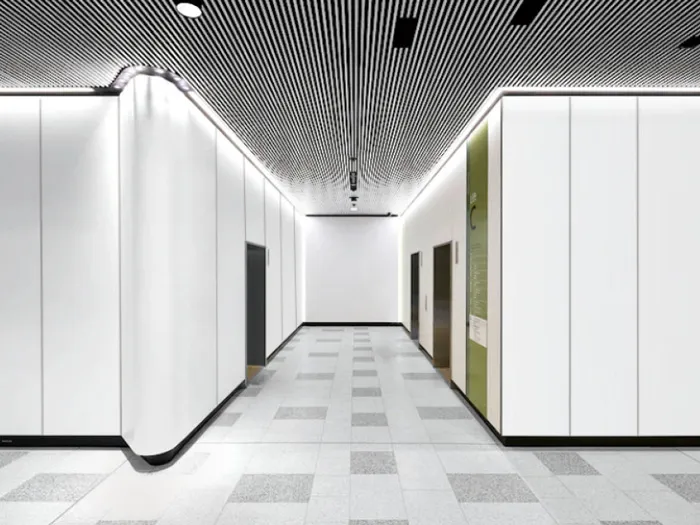

Solid Color Steel Wall Panel is suitable for:

• Hospitals

• Schools

• Office buildings

• Hotels

• Commercial buildings

• Service centers

• Public facilities

• Interior decoration projects

Surface Treatment Options

The steel wall panel surface can be customized with:

• Powder coating

• Roller coating

• Heat transfer printing

• Film covering

Different finishes can meet various architectural design requirements.
